DSM Planetary Gear Set for F4A33/W4A33

DSM Automatic Transmission Straight Cut Planetary Gear Set.

These are stronger than OEM material, a thicker tooth profile for reduced bending stress, and approximately 5% more effective gear width at the lower planets by optimizing thrust washers. These are an improvement from OEM parts but not indestructible. They require good lubriction oil pressure feed (minimum 55psi) and high quality oil with extreme pressure additives. Documents linked below for more details.

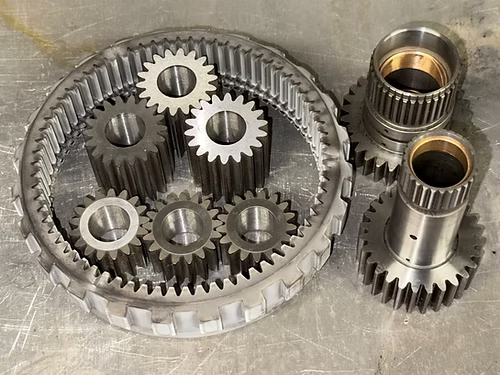

Set Includes: 3x short planet gears, 3x tall planet gears, 3x rivets, 1x short sun gear, 1x tall sun gear, 1x ring gear

We are working with Darren Thomas Racing in Choctaw, OK to provide an assembly service for those interested. If you select this option, parts will ship directly from their location and they will contact you with additional details including core options.

Please Note: Very Important! Core arrangements must be made within 48 hours of purchase. You will receive an email from us with instructions. We will wait 12 business days after the order was placed for your core to arrive; after 12 days your order will be canceled and a full refund will be issued.

An assembly tool ($65) will be required for people choosing to assemble them. It's a one time purchase and reusable.
