DSM / Evo / 7 bolt block down facing billet oil filter housing

Introducing the EvoSpec billet/Anodized DSM / Evo / 7 bolt down facing oil filter housing. This housing fits all DSM and EVO 7 bolt blocks. For the EVO guys this is a big weight reduction over the oem housing IF you are running the Evospec alternator tensioner kit because it deletes the entire mounting spot of the oem tensioner that is on the OEM OFH and frees up a lot of space and weight. When using our tensioner along with this OFH it drops 6ish lbs and frees up tensioner idler belt drag and obviously gains the benefits of using our tensioner. This OFH also deletes the oil cooler ports for those who have deleted their oil cooler.

We also have taken it a step further to offer you 2 different oem pressure relief springs. A high pressure option and a low pressure option. If you are keeping the OEM oil squirters and balance shaft then you would want to use the high pressure spring. If you have deleted the oil squirters and balance shaft then it is ideal to use the low pressure spring. Chose your opting below on what spring you want your housing to come with. The other spring will come separately with your kit in the event you ended up needing it. They are very simple to switch. Simply remove the black Anodized cap, remove the spring, install the other spring and re install the cap. Done.

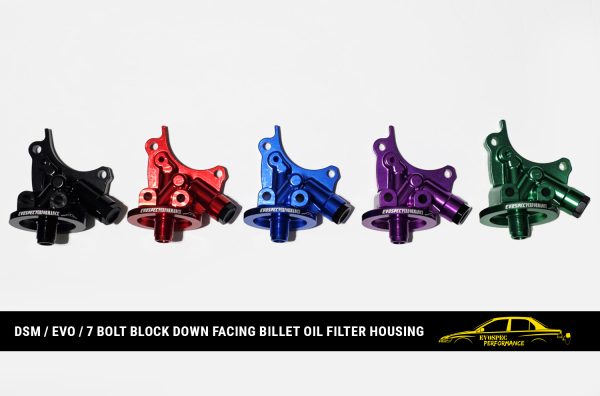

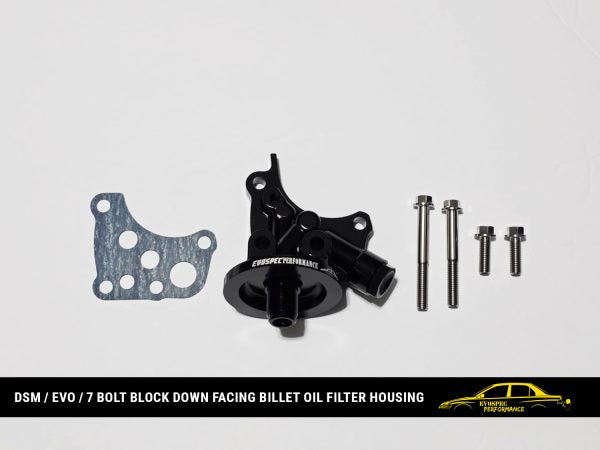

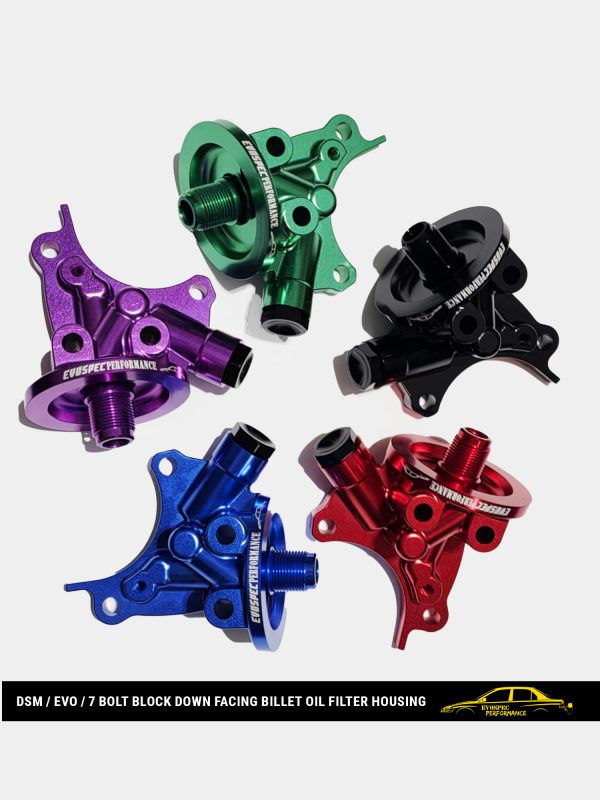

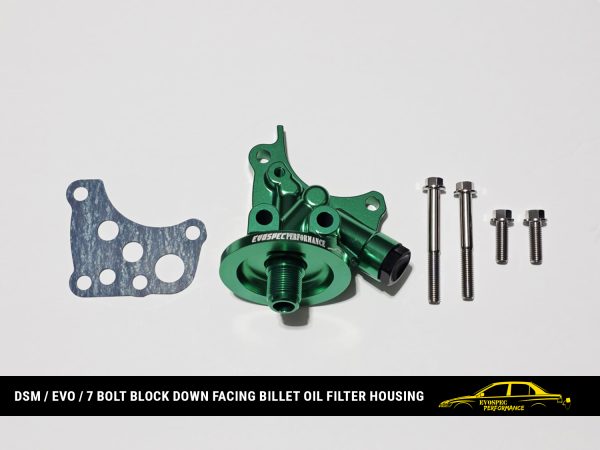

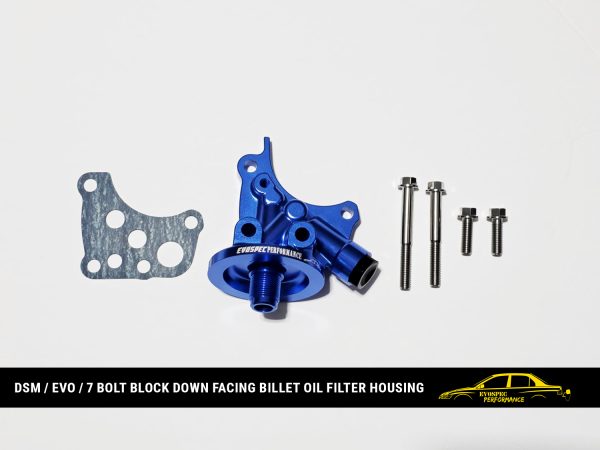

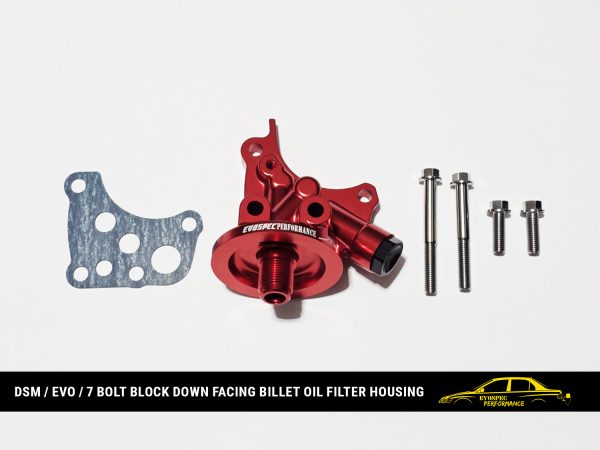

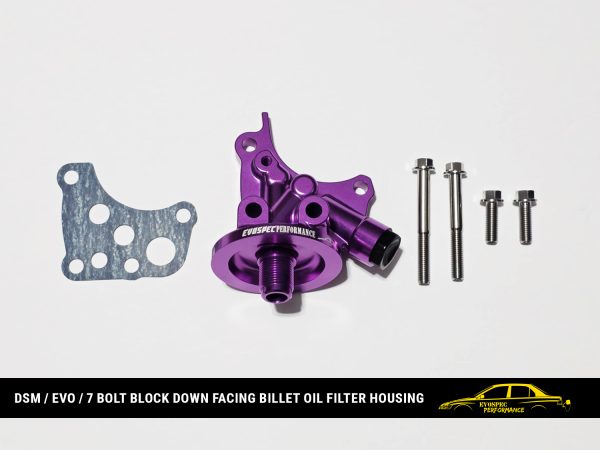

The Evospec OFH will come fully Anodized in 5 different colors. Black, red, blue, green, and purple. Each housing will come 100% complete ready to bolt on with custom made oil pressure release piston, brand new OEM pressure release spring, and custom black Anodized pressure release nut/cap. Additionally Each housing will also include a new OEM OFH gasket, second pressure relief spring, and Evospec Titanium mounting hardware.
